Recording amplifier

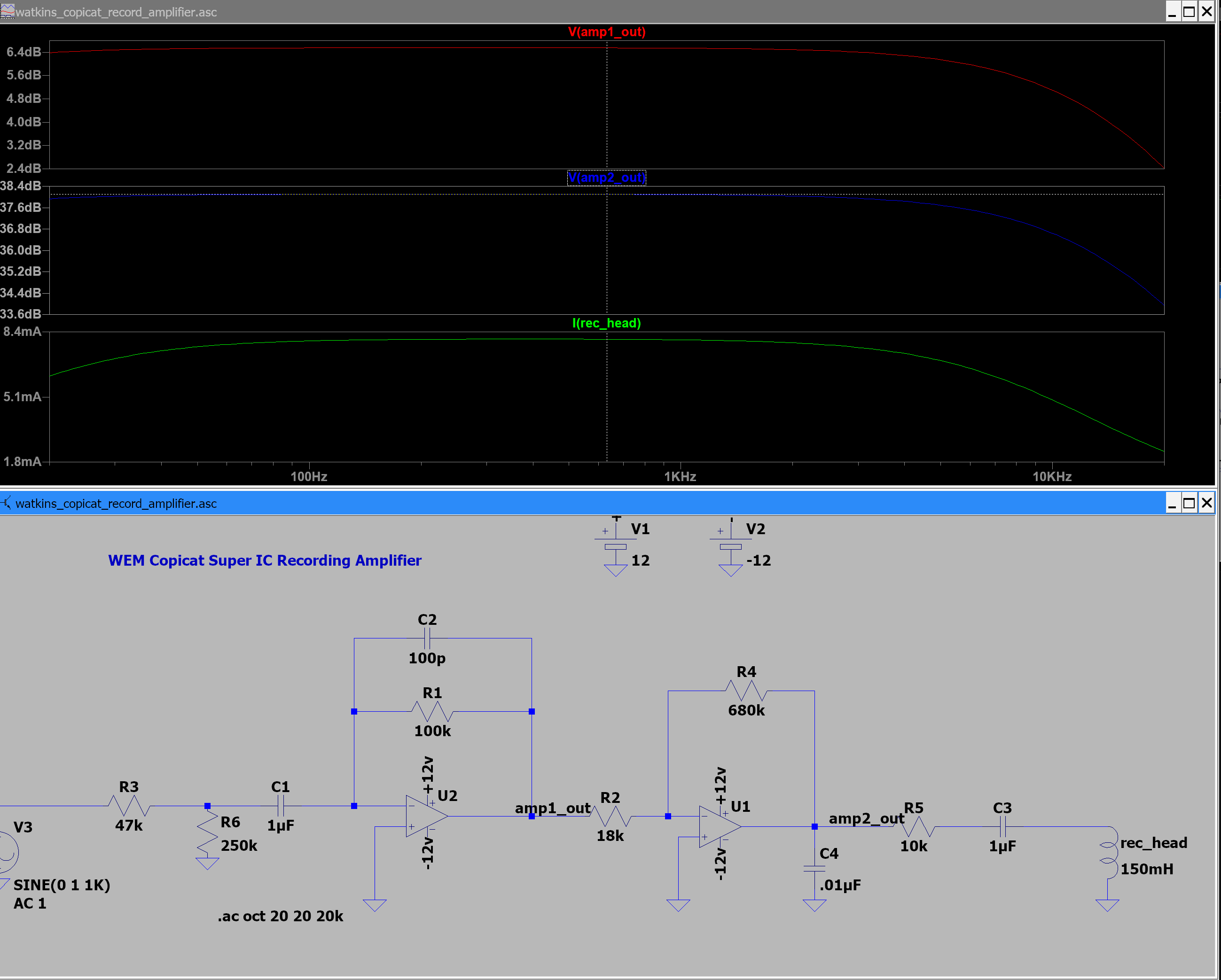

Circuit analysis of Copicat recording amplifier. Input voltage is 1V (0dB reference).

LTspice simulation file

Prerequisites

• Understanding Phase Shift in Analog Circuits
